8MP IP Indoor/Outdoor Small Size Bullet. Fixed 2.8mm Lens (108°). 98 Feet Smart IR. PoE Capable. Ai (Advanced Intelli...
1/2.8 CMOS | 8MP | 30fps@4K
2.8mm | Fixed | AoV 108
Max. IR Length 98ft | Smart IR | 1 IR LED
Perimeter Protection | Intelligent Motion Detect
IP67 | 12VDC Or PoE | 256GB MSD
IVS | AGC | 120dB True WDR | HLC | BLC | 3DNR

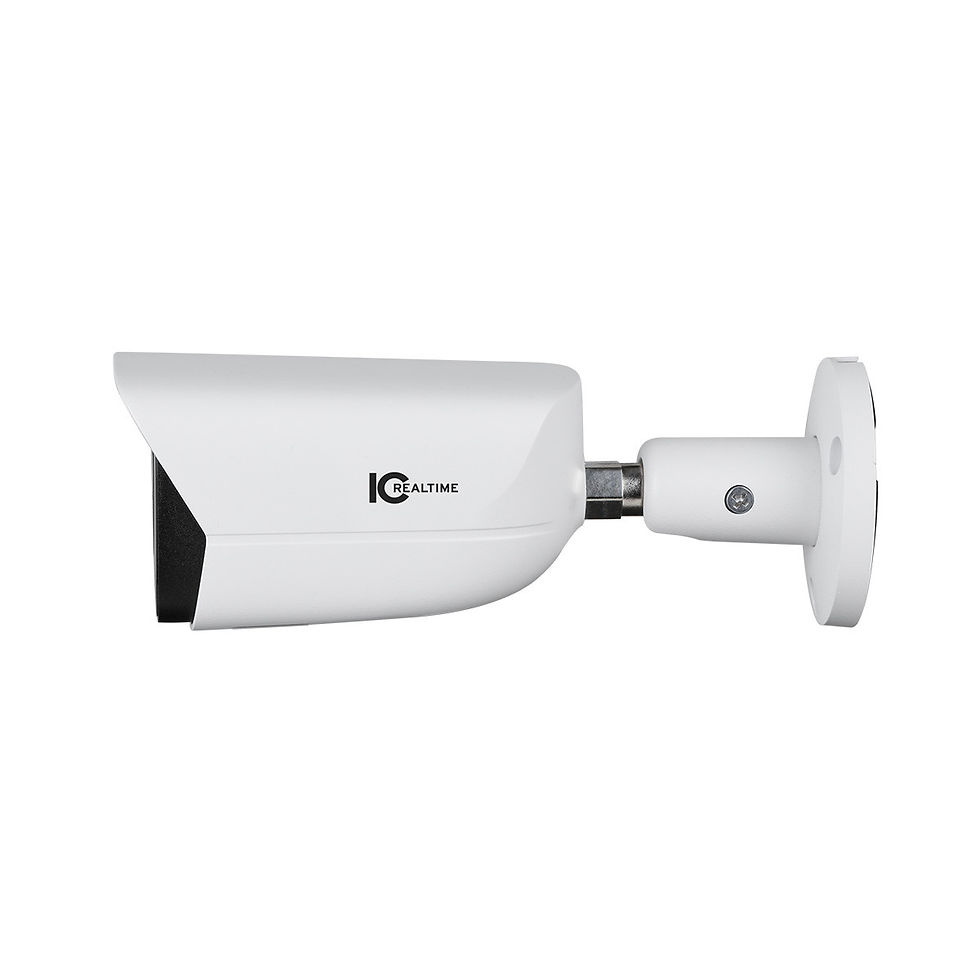

IPEL-B80F-IRW2 BULLET CAMERA
Image Sensor: 1/2.8” 8 Megapixel progressive CMOS Effective Pixels: 3840(H) x 2160(V) RAM/Rom: 512MB / 128MB Scanning System: Progressive Minimum Illumination: 0.007 Lux @F1.4 S/N Ratio: > 56 dB Illumination Distance: Distance up to 30 m (98.4 ft) Illumination On/Off Control: Auto/Manual Illumination LEDs: 1 IR Wavelength: 850 nm Camera Illumination Type: IR IC Realtime products are backed by an industry-leading 10 year warranty.
All orders are shipped F.O.B. from IC Realtime distribution facilities or manufacturer's facilities for drop shipments. Title and risk of loss pass to the customer on delivery to the common carrier or upon customer pickup.
IC Realtime will replace, or at its sole discretion repair without charge, any DVR (Digital Video Recorder), NVR (Network Video Recorder) Camera proved defective in material, workmanship or operation for ten (10) years, subject to warranty conditions and exceptions below.
If during the warranty period, we cannot repair your product, we will replace the product with a working product of the same model, or if the same model is not available, with a comparable product.
TEN (10) YEAR WARRANTY CONDITIONS & EXCEPTIONS:
1. Dated proof of purchase with covered unit serial numbers is required for warranty service. Please include a copy of your receipt or invoice with your return.
2. All goods requiring warranty repair require acquiring a valid Case NUMBER (Case). Case numbers can only be issued by IC Realtime technical representatives via email (tech@ICRealtime.com) or by calling the support line at (954) 772-5327.
3. Service returns must have the issued RMA number displayed on the return shipment carton or label. Returns received without an RMA number visible will be refused and returned to the sender unopened.
4. IC Realtime assumes no risk and shall be subject to no liability for damages or loss resulting from the specific use or application made of the Products. IC Realtime’s liability for any claim, whether based on breach of contract, negligence, infringement of any rights of any party or product liability, relating to the Products shall not exceed the price paid to IC Realtime for such Products or the published (Dealer price at the time of sale ), whichever is less.
5. In no event will IC Realtime be liable for any special, incidental or consequential damages (including loss of use, loss of profit and claims of third parties) however caused, whether by the negligence of IC Realtime or otherwise.
6. For warranty repaired or replaced products, IC Realtime will warrant all replacement parts and repairs for the remainder of the original warranty, or 90 days from the date of IC Realtimerepair/replacement return shipment, whichever is longer.
7. Service and warranty repairs are prorated from the end user date of purchase. For Four (4) years (48 months) after purchase IC Realtime covers 100% of replacement or repair costs. After 4 years (48 months), replacement or repair value will prorate for normal wear & by .83 % per month from date of purchase through the end of warranty period. Replacement, upgrade or repair charges are calculated at standard dealer or MSRP pricing whichever is applicable . Warranty is non-transferrable.
8. Repairs made necessary by reason of misuse, alteration, or accident, or cosmetic damage such as finish fading or scratches & scuffs are not covered under this warranty.
9. Exceptions:
-
Hard drives, SD cards, storage drives, intercom systems and IR Rings (the illumination ring circuit board, LEDs and Components mounted on the board) are covered for three (3) years.
-
All Edge series cameras/recorders are covered for seven (7) years after February 1st, 2020 (all sales prior to Feb 1st, 2020 were covered for (3) years). Service and warranty repairs are prorated from the end user date of purchase. For Three (3) years (36 months) after purchase IC Realtime covers 100% of replacement or repair costs. After 3 years (36 months), replacement or repair value will prorate for normal wear & by 1.19% per month from date of purchase through the end of warranty period. Replacement, upgrade or repair charges are calculated at standard dealer or MSRP pricing whichever is applicable. Warranty is non-transferrable.
-
All Clearview CCTV products are covered for seven (7) years. Service and warranty repairs are prorated from the end user date of purchase. For Three (3) years (36 months) after purchase IC Realtime covers 100% of replacement or repair costs. After 3 years (36 months), replacement or repair value will prorate for normal wear & by 1.19% per month from date of purchase through the end of warranty period. Replacement, upgrade or repair charges are calculated at standard dealer or MSRP pricing whichever is applicable. Warranty is non-transferrable.
-
All IC HOME series (Dinger, Flooder, Singer, etc) products are covered for seven (7) years after March 31st, 2020 For Three (3) years (36 months) after purchase IC Realtime covers 100% of replacement or repair costs. After 3 years (36 months), replacement or repair value will prorate for normal wear & by 1.19% per month from date of purchase through the end of warranty period. Replacement, upgrade or repair charges are calculated at standard dealer or MSRP pricing whichever is applicable. Warranty is non-transferrable.
-
All network switches, power distribution boxes, mounting brackets, and accessories are covered for one (1) year.
-
Any special order product including Cradlepoint, Ubiquiti, NEMA boxes and Designer Line are covered for (1) year.
-
Designer Line custom coated items are warranted against normal wear and tear such as fading, peeling or cracking. Warranty does not cover scratches, chips or any damages due to negligence, abuse or other causes.
-
B-stock or open box items are covered for thirty (30) days for product failures only.
After the above stated warranty period there is no warranty of any kind on these components. Any product sold by IC Realtime but not manufactured by IC Realtime is warranted only by the original manufacturer's warranty, no other warranties of any kind is offered or implied.
10. Customers seeking warranty for products not manufactured by IC Realtime need to deal directly with the original equipment manufacturer.
11. Warranty validity periods remain with the original purchase date.
-
Lens Type: Fixed Mount Type: M12 Focal Length: 2.8mm Max. Aperture: F1.4 Angle of View: Horizontal 108°, Vertical 58° Focus Control: Fixed Close Focus Distance: 1.4 m (4.6 ft) DORI - Detect: 280ft DORI - Observe: 112ft DORI - Recognize: 56ft DORI - Identify: 28ft Compression: H.265+ / H.265 / H.264+ / H.264 Streaming Capability: 3 Streams Resolution: 4K/8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1(704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Frame Rate: Main stream: 3840 × 2160 @(1–20 fps by default)
3840 × 2160 @(1–25/30 fps when AI function disabled)
Sub stream: 704 × 576 @(1–25 fps)/
704 × 480 @ (1–30 fps)
Third Stream: 1920 × 1080 @(1–25/30 fps)Bit Rate Control: CBR/VBR Bit Rate: H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) Day/Night: Auto(ICR) / Color / B/W Backlight Compensation: BLC / HLC / WDR(120dB) White Balance: Auto / Natural / Street Lamp / Outdoor / Manual Gain Control: Auto / Manual Noise Reduction: 3D DNR Motion Detection: Off / On (4 Zones Rectangular) Region of Interest: Off / On (4 Zones) Smart IR: Supported Digital Zoom: 16x Flip: 0°/90°/180°/270° (Supports 90°/270° with 1080p resolution and lower.) Mirror: Off / On Privacy Masking: Up to 4 areas Video Interface: N/A Audio I/O: Built-in microphone;
1 channel in (RCA port), 1 channel out (RCA port)Alarm I/O: 1/1 Memory Slot: Micro SD Card 256GB When your next video camera job requires a metal case IR bullet camera, IC Realtime's new 8MP FlexSmartAi series IPEL-B80F-IRW2 is the intelligent, dependable answer.
Like it's sister, the FlexSmartAi fixed lens cameras; the B80F incorporates a 2.8 mm fixed medium wide-angle lens with a 108°h × 58°v FOV. This security camera focuses on a super low-light, 8mp (3840 × 2160) video sensor with 0.007 Lux performance, 95+ ft. of SmartIRs, SMART H.265+ video compression, ONVIF (Profile S/ G/P/T) P2P, and CGI compatibility.
The B80F comes loaded with IC Realtime exposure control suite with Wide Dynamic Range (WDR), highlight & backlight compensation, and digital watermarking for court-admissible forensic video. It becomes clear the B80F makes the perfect future-proof choice.
The B80F installs & aims as quickly as any IP bullet camera, and the 8mp video sensor & FlexSmartAi & deep learning algorithms inside give it the video precision & detailed images needed for not only amazing live views and recording, but the clarity to enable facial recognition & identification systems to work at full capacity.
B50F's advanced Wide Dynamic Range (WDR) exposure controls assure maximum image quality under any lighting conditions, especially at night or to defeat reflected glare, rendering full details for accurate recognition.
Those same FlexSmartAi systems enable the B80F to recognize human, and vehicle intrusions defined IVS "tripwire" rules with high accuracy & dependability. The system filters all motion detection signals frame by frame to eliminate false alarms, triggering when intrusion is confirmed and ignoring windblown leaves or other irrelevant movements.
Once each video frame is optimized, the B80F's FlexSmartAi compresses it using a Smart H.265+ video codec with a scene-adaptive encoding and flexible multi-frame reference structure. All while using intelligent noise reduction, ensuring high-speed video streaming and less network loading, so bit rates and storage requirements are reduced by up to 70% compared to standard H.265 video compression.
All IC Realtime cameras & recorders are protected from cyber threats by multiple layers of authorizations & password protections to ensure device & network security. All network traffic is encrypted in both directions to a point where our gear now meets the newest network UL CAP certification standards.
B80F's physical features include IP67 weather protection, 12VDC local power anywhere 7w of PoE isn't available, alarm in & out ports, an audio mic built-in and a set of audio in & out jacks for external audio, and B80F can support a 256Gb SD card for on-board video storage.Ethernet: RJ-45 (10/100Base-T) Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI Streaming Method: Unicast / Multicast Max. User Access: 20 (Total bandwidth: 72 M) Edge Storage: NAS, FTP, SFTP, Micro SD Card (256 GB)
Local PC for instant recordingWeb Viewer: IE, Chrome, Firefox, Safari IVS: Tripwire, intrusion (50 objects max) Advanced Intelligent Functions: Perimeter Protection: Tripwire, Intrusion (Recognition of vehicle and people, 50 objects max)
Intelligent Motion Detect: Motion detection alarm for human and vehicle. Filters misinformation such as leaves and light.
Works together with Smart NVRs to perform refined intelligent search, event extraction and merging to event videosCompression: G.711a; G.711Mu; G726
