4MP IP AI Series Indoor/Outdoor Mid Size Bullet. 2.8mm Fixed Lens (103° AOV). 98 Feet Warm Light LED. POE Capable.
1/2.7” CMOS | 4MP | 30fps@4MP
2.8mm | Fixed Lens | AoV 103
Max. Illumination 98ft | Warm Light LEDs
Perimeter Protection | Intelligent Motion Detect
IP67 | 12VDC Or PoE | Max. 8.4W | 256GB MSD
Made In South Korea And Conforms To The Trade Agreements Act (TAA)

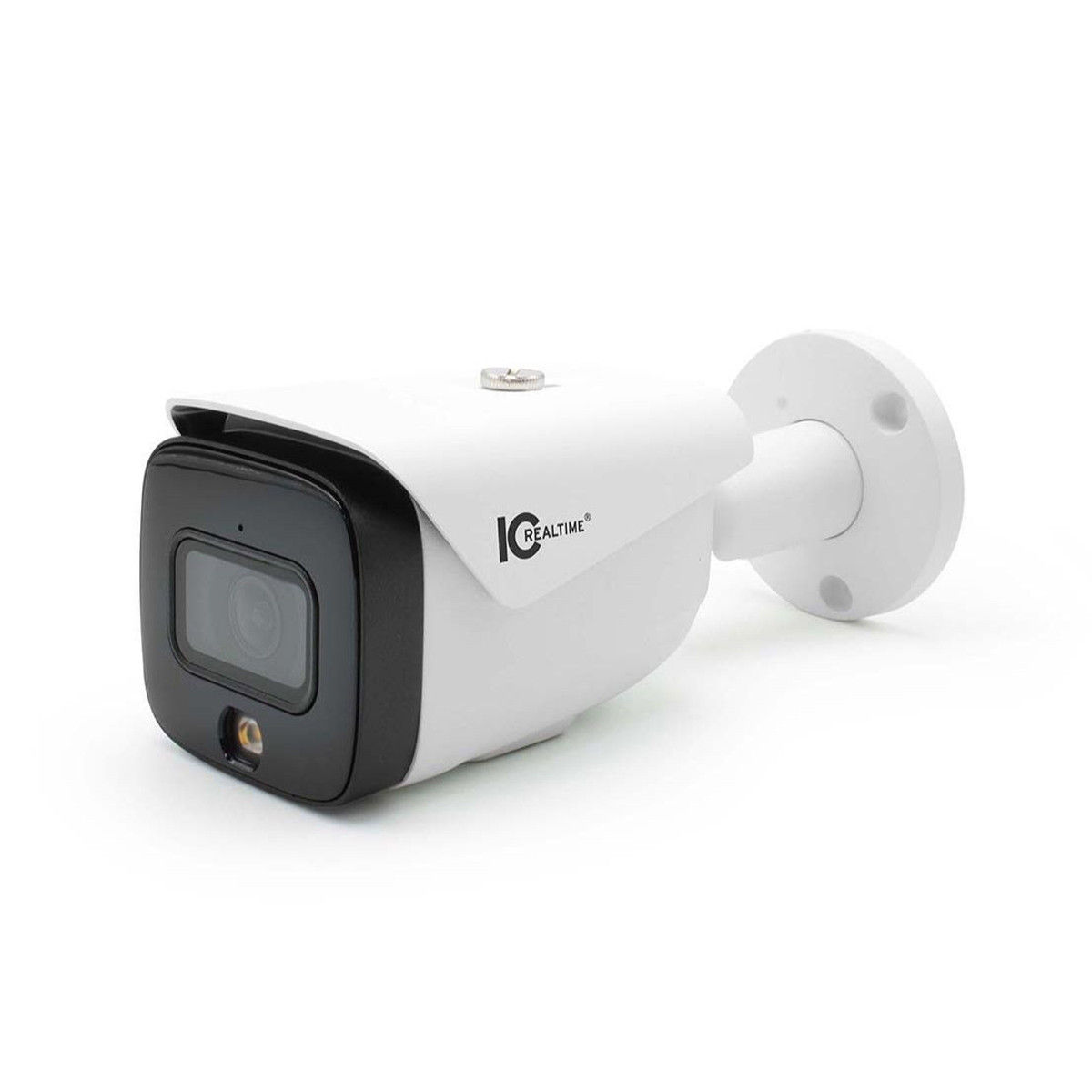

IPMX-B40F-W1-LED BULLET CAMERA
Image Sensor: 1/2.7” 4 Megapixel progressive scan CMOS Effective Pixels: 2688(H) x1520(V) RAM/Rom: 128MB/ 512MB Scanning System: Progressive Minimum Illumination: 0.003 Lux@F1.0 S/N Ratio: > 56 dB Illumination Distance: Distance up to 98.4 ft (30 m) Illumination On/Off Control: Auto/ Manual Illumination LEDs: 1 Full Color Warm Light LED IR Wavelength: 850 nm Camera Illumination Type: White Light IC Realtime products are backed by an industry-leading 10 year warranty.
All orders are shipped F.O.B. from IC Realtime distribution facilities or manufacturer's facilities for drop shipments. Title and risk of loss pass to the customer on delivery to the common carrier or upon customer pickup.
IC Realtime will replace, or at its sole discretion repair without charge, any DVR (Digital Video Recorder), NVR (Network Video Recorder) Camera proved defective in material, workmanship or operation for ten (10) years, subject to warranty conditions and exceptions below.
If during the warranty period, we cannot repair your product, we will replace the product with a working product of the same model, or if the same model is not available, with a comparable product.
TEN (10) YEAR WARRANTY CONDITIONS & EXCEPTIONS:
1. Dated proof of purchase with covered unit serial numbers is required for warranty service. Please include a copy of your receipt or invoice with your return.
2. All goods requiring warranty repair require acquiring a valid Case NUMBER (Case). Case numbers can only be issued by IC Realtime technical representatives via email (tech@ICRealtime.com) or by calling the support line at (954) 772-5327.
3. Service returns must have the issued RMA number displayed on the return shipment carton or label. Returns received without an RMA number visible will be refused and returned to the sender unopened.
4. IC Realtime assumes no risk and shall be subject to no liability for damages or loss resulting from the specific use or application made of the Products. IC Realtime’s liability for any claim, whether based on breach of contract, negligence, infringement of any rights of any party or product liability, relating to the Products shall not exceed the price paid to IC Realtime for such Products or the published (Dealer price at the time of sale ), whichever is less.
5. In no event will IC Realtime be liable for any special, incidental or consequential damages (including loss of use, loss of profit and claims of third parties) however caused, whether by the negligence of IC Realtime or otherwise.
6. For warranty repaired or replaced products, IC Realtime will warrant all replacement parts and repairs for the remainder of the original warranty, or 90 days from the date of IC Realtimerepair/replacement return shipment, whichever is longer.
7. Service and warranty repairs are prorated from the end user date of purchase. For Four (4) years (48 months) after purchase IC Realtime covers 100% of replacement or repair costs. After 4 years (48 months), replacement or repair value will prorate for normal wear & by .83 % per month from date of purchase through the end of warranty period. Replacement, upgrade or repair charges are calculated at standard dealer or MSRP pricing whichever is applicable . Warranty is non-transferrable.
8. Repairs made necessary by reason of misuse, alteration, or accident, or cosmetic damage such as finish fading or scratches & scuffs are not covered under this warranty.
9. Exceptions:
-
Hard drives, SD cards, storage drives, intercom systems and IR Rings (the illumination ring circuit board, LEDs and Components mounted on the board) are covered for three (3) years.
-
All Edge series cameras/recorders are covered for seven (7) years after February 1st, 2020 (all sales prior to Feb 1st, 2020 were covered for (3) years). Service and warranty repairs are prorated from the end user date of purchase. For Three (3) years (36 months) after purchase IC Realtime covers 100% of replacement or repair costs. After 3 years (36 months), replacement or repair value will prorate for normal wear & by 1.19% per month from date of purchase through the end of warranty period. Replacement, upgrade or repair charges are calculated at standard dealer or MSRP pricing whichever is applicable. Warranty is non-transferrable.
-
All Clearview CCTV products are covered for seven (7) years. Service and warranty repairs are prorated from the end user date of purchase. For Three (3) years (36 months) after purchase IC Realtime covers 100% of replacement or repair costs. After 3 years (36 months), replacement or repair value will prorate for normal wear & by 1.19% per month from date of purchase through the end of warranty period. Replacement, upgrade or repair charges are calculated at standard dealer or MSRP pricing whichever is applicable. Warranty is non-transferrable.
-
All IC HOME series (Dinger, Flooder, Singer, etc) products are covered for seven (7) years after March 31st, 2020 For Three (3) years (36 months) after purchase IC Realtime covers 100% of replacement or repair costs. After 3 years (36 months), replacement or repair value will prorate for normal wear & by 1.19% per month from date of purchase through the end of warranty period. Replacement, upgrade or repair charges are calculated at standard dealer or MSRP pricing whichever is applicable. Warranty is non-transferrable.
-
All network switches, power distribution boxes, mounting brackets, and accessories are covered for one (1) year.
-
Any special order product including Cradlepoint, Ubiquiti, NEMA boxes and Designer Line are covered for (1) year.
-
Designer Line custom coated items are warranted against normal wear and tear such as fading, peeling or cracking. Warranty does not cover scratches, chips or any damages due to negligence, abuse or other causes.
-
B-stock or open box items are covered for thirty (30) days for product failures only.
After the above stated warranty period there is no warranty of any kind on these components. Any product sold by IC Realtime but not manufactured by IC Realtime is warranted only by the original manufacturer's warranty, no other warranties of any kind is offered or implied.
10. Customers seeking warranty for products not manufactured by IC Realtime need to deal directly with the original equipment manufacturer.
11. Warranty validity periods remain with the original purchase date.
-
Lens Type: Fixed-focal Focal Length: 2.8mm Max. Aperture: F1.0 Angle of View: Horizontal:103°; vertical: 53°; Close Focus Distance: 3.9 ft (1.2 m) DORI - Detect: 183ft DORI - Observe: 73ft DORI - Recognize: 36ft DORI - Identify: 18ft Compression: H.265,H.264,H.264B,H.264H,
MJPEG (only supported by sub stream)Streaming Capability: 3 Streams Resolution: 2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240) Frame Rate: Main Stream: 2688 × 1520(1–25/30 fps)
Sub Stream: D1(1~30fps)
Third Stream: 720P(1~25/30fps)Bit Rate Control: CBR/ VBR Bit Rate: H.264: 32 Kbps–8192 Kbps
H.265: 19 Kbps–8192 KbpsDay/Night: Auto(ICR) / Color / B/W White Balance: Auto/Natural/Street Lamp/Outdoor/Manual Gain Control: Auto / Manual Noise Reduction: 3D DNR Flip: 0°/90°/180°/270° (Supports 90°/270° with 1080p resolution and lower) Privacy Masking: Off / On (4 Area, Rectangle) WDR: Support Audio I/O: 1/1 channel In/Out Alarm I/O: 1 channel In: 5mA 5VDC
1 channel Out: 300mA 12VDCFactory Reset: Yes Memory Slot: 265GB Micro SD IC Realtime IPEG-B20F-IRW4 is the latest in our long line of ultra-dependable & cost-effective full HD IP bullet cameras. These rugged little IPEG-B20F bullets have been the “go-to” compact POE bullet camera for our pros for years for good reason. They stream full HD video 24/7 without fail and present minimal load to the network or POE power switch. They just do the job, year after year.
THE LATEST EDITION OF A CLASSIC
The new -IRW4 version continues the tradition with upgraded cybersecurity protocols, ensuring the integrity and confidentiality of your surveillance data. With secure encryption and multi-level authentication, you can rest easy knowing that your camera feed is protected from unauthorized access. The high-definition image sensor combined with its advanced lens provides sharp and vivid visuals, enabling great D.O.R.I. performance - detecting objects at over 95+ ft. and imaging sharply enough for NVR-based facial identification at over 12 ft.
STATE OF THE ART 2K VIDEO
IPEG-B20F-IRW4’s 2.8mm lens is factory fixed at the sharpest focus point over the latest edition of our 2MP/1080p (1920×1080p) 2.7” CMOS image sensor that uses SMART H.264/H.265 “lossless” compression” video encoding to stream at an ultra-low bit rate, for exceptional video clarity & detail resolution over the camera’s 102° wide Field Of View.
SMART IR NIGHTVISION & EASY SETUP
SmartIR automatically adjusts IR intensity to prevent IR “flare,” for 24/7 surveillance without image compromise. 18 IR LEDs reach out up to 95+ feet for super-sharp grayscale images in low-light conditions. Set up is a breeze, thanks to the camera’s integrated base & available screwdriver-fit junction boxes and its user-friendly “Plug & Play” auto initialization with IC Realtime POE recorders and intuitive interface. ONVIF(Profile S), CGI, and P2P industry-standard protocols make it VMS and HTML5 compatible for use with Chrome & Firefox browsers ensuring seamless integration with existing surveillance systems.
COMMERCIAL-GRADE
IPEG-B20F-IRW4’s durable construction ensures long-lasting performance for both indoor and outdoor surveillance in even the harshest weather conditions. Whether it's rain, snow, or extreme temperatures, this camera is built to IP67 weather-tight standards, making it dust-proof and certified to operate normally even after soaking in 1 m deep water for 30 minutes. Capable of being powered by both 12V DC and PoE power, the camera even has a super-wide ±30% input voltage tolerance range.
THE BEST CAMERAS = THE BEST WARRANTIES
IC Realtime stands behind the quality and reliability of the IPEG-B20F-IRW4 with the Edge Line’s 7-Year Limited Warranty and the industry’s best iCare customer support. Our team of experts is always ready to assist you, whether it's answering your queries or providing technical assistance. Even sophisticated camera installations that utilize our most advanced 4K & AI cameras will have positions that just need a dependable 1080P HD POE bullet that delivers IC Realtime’s signature clarity & image management. For residential and commercial environments, IPEG-B20F-IRW4 is that camera.
Ethernet: RJ-45 (10/100 Base-T) Protocol: IPv4; IPv6; HTTP; HTTPS;TCP; UDP; ARP;RTP; RTSP ;RTCP; RTMP; SMTP; FTP;SFTP; DHCP; DNS; DDNS; QoS;UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE;802.1x; SNMP Interoperability: ONVIF(Profile S/Profile G/Profile T);CGI;P2P Compatibility: ONVIF (Profile S/Profile G/Profile T), CGI, P2P Streaming Method: Unicast / Multicast Max. User Access: 20 Users (Total bandwidth: 64 M) Edge Storage: NAS; FTP; SFTP; Micro SD card 256 GB Web Viewer: IE, Chrome, Firefox, Safari Management Software: SmartICRSS, DSS Smart Phone: iOS, Android IVS: Tripwire, Intrusion (50 objects max) Advanced Intelligent Functions: Perimeter Protection: Tripwire, Intrusion (Recognition of vehicle and people, 50 objects max)
Intelligent Motion Detect: Motion detection alarm for human and vehicle. Filters misinformation such as leaves and light.
Works together with Smart NVRs to perform refined intelligent search, event extraction and merging to event videosCompression: G.711a; G.711Mu; G726
